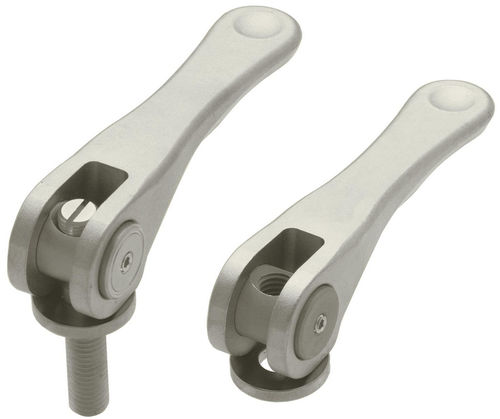

Steel cam lever QLCL

with tapped insertthreadedinternal thread

Product Overview
These cam lever fasteners provide quick tool-free fastening and unfastening. Compared to conventional cam handles, the QLCL series offers improved vibration resistance and a distinct tactile click at the clamping end. For stud-type variants the handle orientation can be set to any direction. Engage by threading like a conventional fastener; push the lever down for final tightening and pull the lever up to release clamping force and unthread.

Materials & Finish

• Cam lever: 4140 steel, quenched and tempered
• Ring nut & washer: 1045 steel, quenched and tempered
• Threaded stud: 4135 steel, quenched and tempered
• Finish: Electroless nickel plating on all components

Part Options (table)

• QLCL-06-NP | Type A - Tapped | Thread: M6x1.00 | T=16 | D=19.4 | D1=12 | L=16 | W=14 | W1=6.5 | W3=63 | R=0.3 | S=0.8 | Advanced Stroke=8.9 | Operating Load=157 lbs
• QLCL-06X20-NP | Type B - Stud | Thread: M6x1.00 | D2=22 | L=16 | (other dims as Type A)
• QLCL-06X30-NP | Type B - Stud | Thread: M6x1.00 | D2=32 | L=16
• QLCL-06X40-NP | Type B - Stud | Thread: M6x1.00 | D2=42 | L=16
• QLCL-06X50-NP | Type B - Stud | Thread: M6x1.00 | D2=52 | L=16
• QLCL-08-NP | Type A - Tapped | Thread: M8x1.25 | T=20 | D=23.2 | D1=15 | L=20 | W=18 | W1=9 | W3=80 | R=0.4 | S=0.8 | Advanced Stroke=11.2 | Operating Load=314 lbs
• QLCL-08X25-NP | Type B - Stud | Thread: M8x1.25 | D2=27 | L=20
• QLCL-08X30-NP | Type B - Stud | Thread: M8x1.25 | D2=32 | L=20
• QLCL-08X40-NP | Type B - Stud | Thread: M8x1.25 | D2=42 | L=20
• QLCL-08X50-NP | Type B - Stud | Thread: M8x1.25 | D2=52 | L=20

Media (available)

• How to Use (illustration)
• Specifications (PDF)

Technical specifications

• Series / Model: QLCL
• Function: Cam action lever fastener for quick tool-free fastening/unfastening
• Materials: Cam lever - 4140 steel; Ring nut & washer - 1045 steel; Threaded stud - 4135 steel; all components quenched & tempered
• Finish: Electroless nickel plating
• Vibration resistance: Improved compared with conventional cam handles; tactile click at clamping end
• Handle orientation: Stud-type versions allow handle position to be set to any direction
• Operating principle: Thread to engage, push lever down for final tightness; pull lever up to release
• Available thread sizes & variants: M6 x 1.00 (tapped or stud lengths 20/30/40/50 mm) and M8 x 1.25 (tapped or stud lengths 25/30/40/50 mm) — see Part Options list for dimensional and load data
