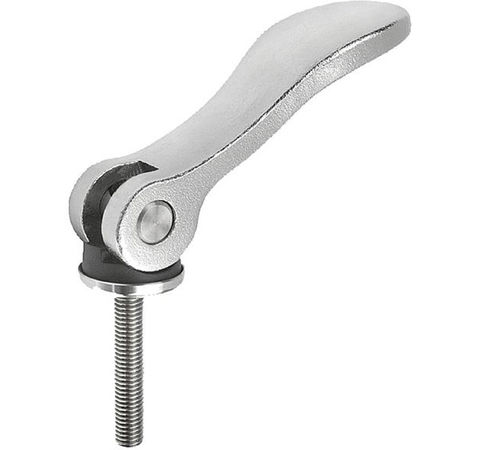

Stainless steel cam lever 04233 series

plasticthreadedadjustable

Product description
These cam-action lever fasteners provide quick fastening and unfastening without tools. They engage by threading like a conventional fastener; for final tightening the cam lever is pushed downward to increase clamping force. To release the clamp and unthread the stud, the cam lever is pulled upward. The adjustable cam levers include a slot on the top of the stud for fine tension adjustments without rotating the handle. They are intended for quick-change operations where components need loosening but not full disassembly. The stainless-steel handle features an electrolytic polished finish; stainless studs have a natural finish. Thrust washers are plastic.

Available part variants

• 120749 | 04233-112005X20 | 04233-112005X20 | M5 | L = 20 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120757 | 04233-112005X30 | 04233-112005X30 | M5 | L = 30 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120762 | 04233-112005X40 | 04233-112005X40 | M5 | L = 40 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120766 | 04233-112005X50 | 04233-112005X50 | M5 | L = 50 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120772 | 04233-112006X20 | 04233-112006X20 | M6 | L = 20 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120781 | 04233-112006X30 | 04233-112006X30 | M6 | L = 30 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120795 | 04233-112006X40 | 04233-112006X40 | M6 | L = 40 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 120797 | 04233-112006X50 | 04233-112006X50 | M6 | L = 50 mm | Clamping Force: 899 Lbs | Hand Force: 27 Lbs | Throw: 1.2 mm
• 121348 | 04233-212008X25 | 04233-212008X25 | M8 | L = 25 mm | Clamping Force: 1,798 Lbs | Hand Force: 78 Lbs | Throw: 1.5 mm
• 121356 | 04233-212008X30 | 04233-212008X30 | M8 | L = 30 mm | Clamping Force: 1,798 Lbs | Hand Force: 78 Lbs | Throw: 1.5 mm

Characteristics / Technical specifications

• Series / model designation: 04233
• Product type: Cam-action lever fastener (adjustable cam lever)
• Handle material / finish: Stainless steel handle, electrolytic polished finish
• Stud material / finish: Stainless steel studs, natural finish
• Thrust washers: Plastic
• Adjustment feature: Slot on top of stud for fine tension adjustments without rotating the handle
• Operation: Thread to engage; push lever downward for final tightening; pull lever upward to release clamping force and unthread
• Typical use: Quick-change operations where parts are loosened but not fully disassembled
• Units shown: Metric (thread sizes M5, M6, M8; various lengths)
• Available parameters listed: thread size (D), length (L), diameters (D1, D2), dimensions (B, B1, H, H1, A, A1), clamping force (Lbs), hand force (Lbs), throw (mm)
