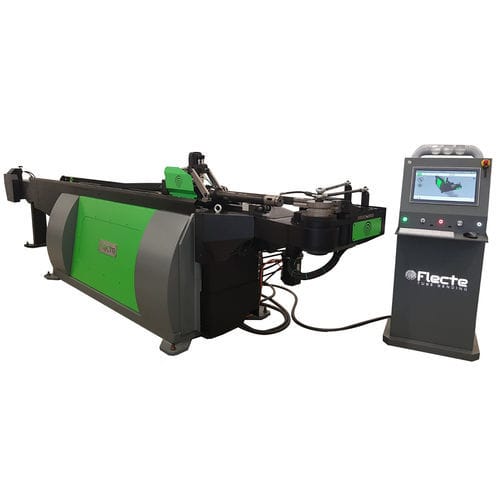

Hybrid bending machine VEX 453tubeprofile3-axis
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Product handled
- tube, profile
- Number of axes
- 3-axis
- Other characteristics
- mandrel, rolling
- Bending radius
10.4 in
- Bending length
49 in
- Bending angle
200 °
- Accuracy
0.05 °
- Overall length
215 in
- Overall width
47 in
- Total height
67 in
- Weight
5,181 lb
(2,350 kg)- Voltage
400 V
- Total power
15 kW
(20.4 hp)
Description
Hybrid tube bending – single stack – for a variety of tube profiles with mandrel or roll bending.
Technical data
Useful length over the clamp - 118.1 inch (C)
Useful length over the mandrel - 181.1 inch (M)
P1 center - 1.6 inch (P1)
Clamp passage - 1.8 inch
Axis Velocity
Tube movement - 36.4 inch/sec
Tube rotation - 375 °/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Bend Capacity
Max Iron tube with mandrel - 1.77x0.12 inch
Max Iron tube roll bending
1.57x0.12 inch
Max aluminium alloy tube with mandrel - 2.36x0.09 inch
Max aluminium alloy tube roll bending
2x0.08 inch
