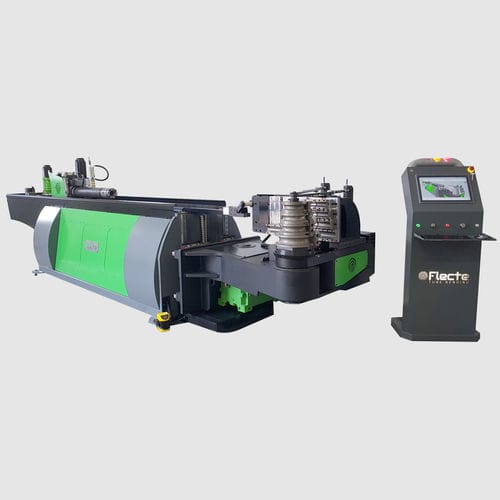

Fully-electric bending machine VEX 659tubeCNC9-axis
Add to favorites
Compare this product
Characteristics
- Operation
- fully-electric
- Product handled
- tube
- Control
- CNC
- Number of axes
- 9-axis
- Bending radius
7.9 in, 13.4 in
- Bending length
51 in
- Bending angle
95 °
- Accuracy
0.05 °
- Overall length
284 in
- Overall width
55 in
- Total height
75 in
- Weight
13,228 lb
(6,000 kg)- Voltage
400 V
- Total power
30 kW
(40.8 hp)
Description
Full Electric tube bending – multiple stacks – for a variety of tube profiles with mandrel and roll bending.
Technical data
P1 center - 2.75 inch (P1)
Clamp passage - 3.7 inch
Axis Velocity
Tube movement - 36.6 inch/sec
Tube rotation - 350 °/sec
Tube offset
19.68 inch/sec
Tube stack
3.93 inch/sec
Tube close - 3.93 inch/sec
Following Block - 21.65 inch/sec
Mandrel - 13.77 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset
0.0020 inch
Tube stack
0.0020 inch
Tube close - 0.0020 inch
Following Block - 0.0020 inch
Mandrel - 0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 2.56x0.16 inch
Max Iron tube roll bending
2.36x0.12 inch
Max aluminium alloy tube with mandrel - 3.15x0.12 inch
Max aluminium alloy tube roll bending
2.56x0.12 inch
