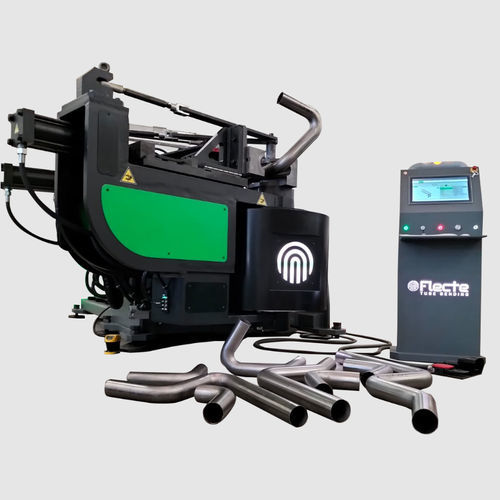

Hybrid bending machine VEX 1505tubeprofile5-axis
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Product handled
- tube, profile
- Number of axes
- 5-axis
- Bending radius
18.5 in, 18.9 in
- Bending length
56 in
- Bending angle
22 °
- Accuracy
0.05 °
- Overall length
333 in
- Overall width
83 in
- Total height
79 in
- Weight
35,274 lb
(16,000 kg)- Voltage
400 V
- Total power
90 kW
(122.4 hp)
Description
for a variety of tube profiles with mandrel and roll bending.
Technical data
P1 center - 2.95 inch (P1)
Clamp passage - 5.7 inch
Axis Velocity
Tube movement - 11.8 inch/sec
Tube rotation - 200 °/sec
Tube offset
7.9 inch/sec
Tube stack
2.4 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset
0.0020 inch
Tube stack
0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 5.91x0.08 inch
Max Iron tube roll bending
3.94x0.12 inch
