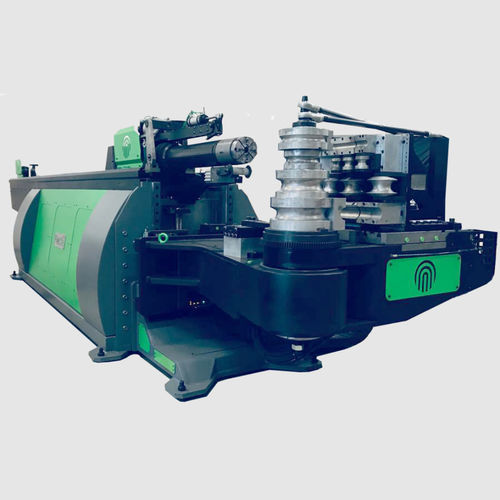

Hybrid bending machine VEX 905tubeprofileCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Product handled
- tube, profile
- Control
- CNC
- Number of axes
- 5-axis
- Bending radius
7.87 in, 13.39 in
(0.53 in)- Bending length
51 in
- Bending angle
65 °
- Accuracy
0.05 °
- Overall length
283 in
- Overall width
54 in
- Total height
63 in
- Weight
13,228 lb
(6,000 kg)- Voltage
400 V
- Total power
35 kW
(47.6 hp)
Description
for a variety of tube profiles with mandrel and roll bending.
Technical data
P1 center - 1.97 inch (P1)
Clamp passage - 3.94 inch
Axis Velocity
Tube movement - 31.5 inch/sec
Tube rotation - 350 °/sec
Tube offset
9.84 inch/sec
Tube stack
5.12 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset
0.0020 inch
Tube stack
0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 3.54x0.16 inch
Max Iron tube roll bending
2.56x0.12 inch
Max aluminium alloy tube with mandrel - 3.94x0.12 inch
Max aluminium alloy tube roll bending
3.54x0.12 inch
