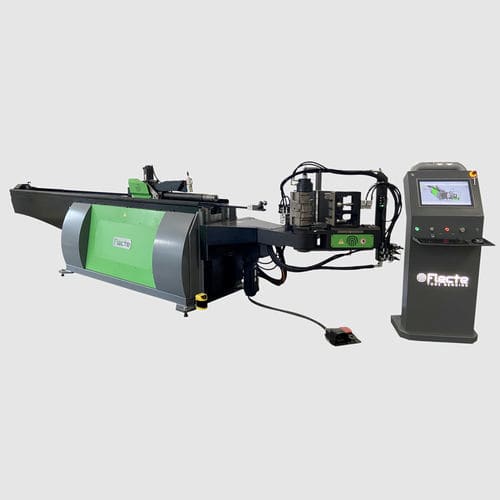

Hybrid bending machine VEX 455tubeprofileCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Product handled
- tube, profile
- Control
- CNC
- Number of axes
- 5-axis
- Bending radius
4.9 in, 10.4 in
- Bending length
49 in
- Bending angle
200 °
- Accuracy
0.05 °
- Overall length
215 in
- Overall width
47 in
- Total height
67 in
- Weight
5,512 lb
(2,500 kg)- Voltage
400 V
- Total power
17 kW
(23.1 hp)
Description
Hybrid tube bending – multiple stacks – for a variety of tube profiles with mandrel and roll bending.
Technical data
Axis Velocity
Tube movement - 39.4 inch/sec
Tube rotation - 375 °/sec
Tube offset
11.8 inch/sec
Tube stack
3.9 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset
0.0020 inch
Tube stack
0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 1.77x0.12 inch
Max Iron tube roll bending
1.57x0.12 inch
Max aluminium alloy tube with mandrel - 2.36x0.09 inch
Max aluminium alloy tube roll bending
2x0.08 inch
