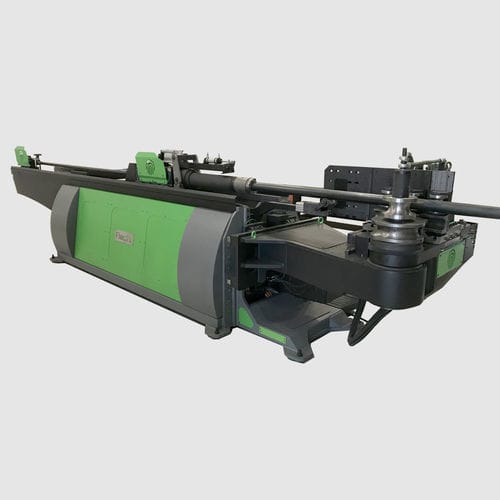

Hybrid bending machine VEX 655tubeprofileCNC
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Product handled
- tube, profile
- Control
- CNC
- Number of axes
- 5-axis
- Bending radius
7.87 in, 13.39 in
- Bending length
50 in
- Bending angle
95 °
- Accuracy
0.05 °
- Overall length
283 in
- Overall width
54 in
- Total height
63 in
- Weight
12,125 lb
(5,500 kg)- Voltage
400 V
- Total power
30 kW
(40.8 hp)
Description
Hybrid tube bending – multiple stacks – for a variety of tube profiles with mandrel and roll bending.
Technical data
P1 center - 1.97 inch (P1)
Clamp passage - 3.15 inch
Axis Velocity
Tube movement - 36.6 inch/sec
Tube rotation - 400 °/sec
Tube offset - 9.84 inch/sec
Tube stack - 5.12 inch
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube offset - 0.0020 inch
Tube stack
0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 2.56x0.16 inch
Max Iron tube roll bending
2.36x0.12 inch
Max aluminium alloy tube with mandrel - 3.94x0.12 inch
Max aluminium alloy tube roll bending
2.56x0.12 inch
