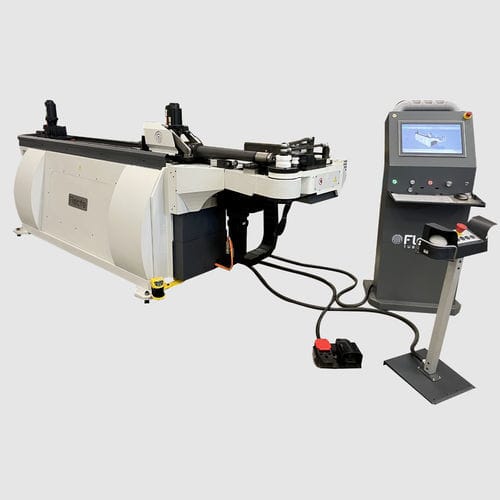

Fully-electric bending machine VEX 457tubeprofileCNC
Add to favorites
Compare this product
Characteristics
- Operation
- fully-electric
- Product handled
- tube, profile
- Control
- CNC
- Number of axes
- 7-axis
- Bending radius
4.9 in, 10.4 in
- Bending length
49 in
- Bending angle
200 °
- Accuracy
0.05 °
- Overall length
215 in
- Overall width
47 in
- Total height
67 in
- Weight
5,512 lb
(2,500 kg)- Voltage
400 V
- Total power
18 kW
(24.5 hp)
Description
Axis Velocity
Tube movement - 39.4 inch/sec
Tube rotation - 375 °/sec
Tube close - 3.9 inch/sec
Following Block - 19.7 inch/sec
Mandrel - 11 inch/sec
Precision
Tube movement - 0.0020 inch
Tube rotation - 0.05°
Tube close - 0.0020 inch
Following Block - 0.0020 inch
Mandrel - 0.0020 inch
Bend Capacity
Max Iron tube with mandrel - 1.77x0.07 inch
Max Iron tube roll bending - 1.57x0.11 inch
Max aluminium alloy tube with mandrel - 2.36x0.07 inch
Max aluminium alloy tube roll bending - 2x0.07 inch
