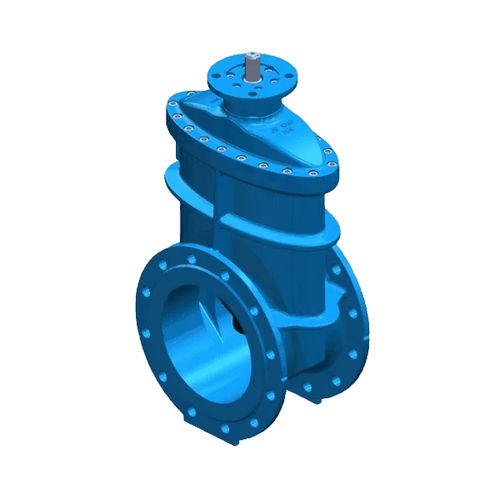

Gate valve GVRA02F

hydraulicfor wastewaterfor potable water

Resilient seated gate valves are gate valves with an elastomer lined wedge. They are especially used for wastewater, drinking water supply and irrigation. We cover an extensive range in stock up to DN800 and bigger sizes on demand. Body, bonnet and ISO bracket are epoxy coated FBE 250µm to protect against corrosion. Norm Compliance for ISO Gate Valves Compliant with EN 1171, EN 1074-1, and EN 1074-2 Face-to-face dimensions according to EN 558 Series 14 and Series 15 Flange dimensions according to EN 1092-2 Hydraulic test compliant with EN 12266-1 Top flange compatible with ISO 5210 for actuator mounting Materials and Construction for Maximum Durability Body, bonnet, and wedge made of ductile iron EN GJS 400-15 according to EN 1563 Wedge coating in vulcanized EPDM rubber according to EN 681-1 WA Seals and O-rings in EPDM rubber, compliant with EN 681-1 WA Stem made of stainless steel EN 1.4021 (AISI 420) Body/bonnet connection secured with galvanized steel fasteners (grade 8.8), fully corrosion-protected All materials, including lubricants, comply with EN 1074-1 and EN 1047-2 standards for potable water Epoxy Coating Protection (250μm) Internal and external protection with fusion-bonded epoxy (FBE) coating, blue RAL 5005, thickness 250μm
