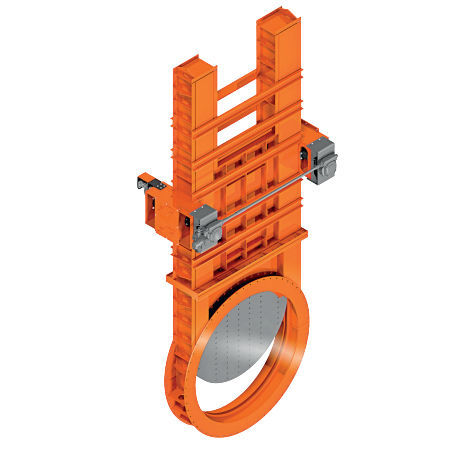

Knife gate valve DVG

pneumaticflow-controlfor gas

Guillotine damper valves type GDV and GDV-T serve mainly for the shut-off and/or flow regulation of different media such as air or process gas. The construction varies from, welded construction to divided structures for bigger sizes. The gate valve’s knife can be made as a single design or reach 100% tightness in a tandem design. For special high temperature applications, ceramic lining inside the body is available according to customer requirements. Flowrates Technical Advice for Choosing a Knife Gate Damper It is possible to use a double gate design and pressurize the space betwen the two blades to create an overpresure. Industrial Applications: Gas Extraction and Dust Removal Flue gas extraction installations Flue gas desulphurization Gas utilization SO2, SO3,NOx Dedusting of furnaces Glass factories Metallurgical plants for copper, zinc, plumb Cement factories Connection Options and Flange Standards by flanges acc. to DIN 24154 custom-made acc. to customer requirements (ANSI / GOST / OTHER) welding-ends rounded flanges for fiber compensator connection Welded Construction and Thermal Operating Ranges design pressure < 0,5 bar design pressure < 3,0 bar (with PED Directive) design temperature -30°C do +750°C (max up t o 1100ºC) other temperatures on request, possibility to use isolation, concrete or ceramic lining etc. Actuator connection according to ISO 5211 custom-made acc. to customer requirements adapted to work with customer actuators or on site actuators
