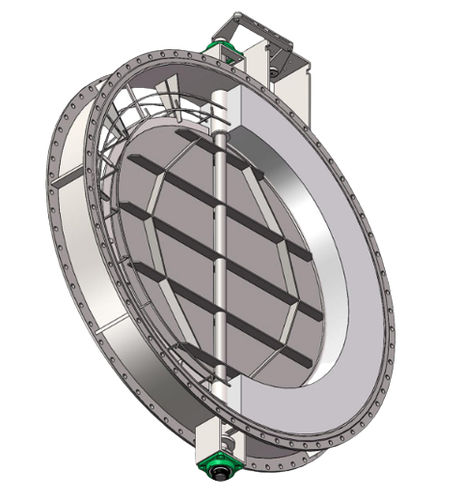

Pneumatic valve

hydraulicflow-controlflange

Designed for heavy duty applications and installed in major plants over Europe, its main function is for the shut-off and/or regulation of media such as air or process gas. Their primary function is on/off shut-off and/or flow regulation for process air or gas. Its welded construction gives full freedom of customization and allows building the valves in the most accurate way to withstand the harshest process conditions. For special high temperature applications, ceramic lining inside the body is available according to customer requirements. High-Temperature Industrial Applications Dedusting of furnaces Glass factories Metallurgical plants for copper, zinc, lead Heat recovery Pyrolizis and gazification units Regenerative oxidation device (RTO) Organic Rankine Cycle units (ORC) Cement factories Connection Options for Industrial Networks by flanges acc. to DIN 24154 by flanges acc. to PN6, PN10, PN16 (acc EN1092-1) custom-made acc. to customer requirements (ANSI / GOST / OTHER) welding-ends rounded flanges for fiber compensator connection Design Optimized for Temperatures up to 1100°C design pressure < 0,5 bar design pressure < 3,0 bar (with PED Directive) design temperature -30°C do +750°C (max up t o 1100ºC) other temperatures on r equest, possibility to use isolation, concrete or ceramic lining etc. Automation and Actuation Options according to ISO 5211 custom-made acc. to customer requirements adapted to work with customer actuators or on site actuators
