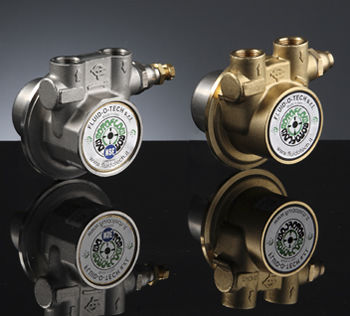

Beverage pump TM 30-200 serieselectricnormal primingrotary vane
Add to favorites
Compare this product
Characteristics
- Fluid
- beverage
- Operation
- electric
- Priming
- normal priming
- Technology
- rotary vane
- Domain
- industrial
- Applications
- cooling, discharge
- Material
- stainless steel, brass
- Other characteristics
- seal-less, direct-drive
- Flow
Min.: 50 l/h
(13.2086 us gal/h)Max.: 550 l/h
(145.29463 us gal/h)- Pressure
16 bar
(232.06 psi)
Description
The TM 30-200 series positive displacement rotary vane pumps are available with brass or stainless steel housings, with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 30 and 200 l/h at 1450 rpm. Any pump of this series may be operated up to 3500 rpm and will provide flow proportional to speed, with a maximum of 550 l/h (145 GPH). Pump discharge pressure is up to a maximum of 16 bar (230 psi). The seal-less, magnetic coupling to motor provides extra reliability and longer service life. This series mounts directly to widely available M56, M63 IEC or NEMA 56C frame motors by means of an adapter.
Self priming
Quiet operation
Seal-less magnetic coupling
Pulsation free flow
Internal relief valve available
Long service life
NFS and WRAS listed
