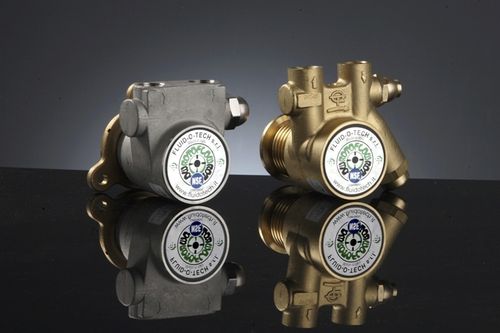

Beverage pump PO 70-400 Serieselectricnormal primingrotary vane
Add to favorites
Compare this product
Characteristics
- Fluid
- beverage
- Operation
- electric
- Priming
- normal priming
- Technology
- rotary vane
- Domain
- industrial
- Applications
- booster, discharge
- Material
- stainless steel, brass
- Other characteristics
- direct-drive
- Flow
Min.: 100 l/h
(26.41721 us gal/h)Max.: 450 l/h
(118.87742 us gal/h)- Pressure
16 bar
(232.06 psi)
Description
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
