Rate indicator totalizer F016

flowdigitalwall-mounted

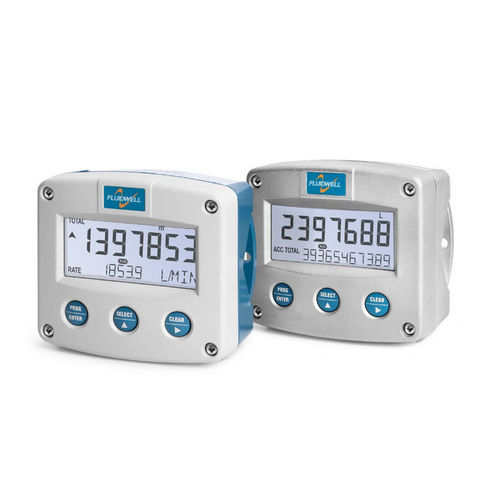

The F016 is a local flow rate indicator / totalizer which displays the actual flow rate, total and accumulated total. In addition to the average K-Factor or Span, eight linearization points can be entered with their frequencies or values. The unit will interpolate between these points, greatly enhancing accuracy in any flow range, even for very low frequency applications. This linearization affects all displayed information as well as the pulse output. On-screen engineering units are easily configured from a comprehensive selection. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Displays total and flow rate simultaneously and additional accumulated total. - Selectable on-screen engineering units for flow rate: mL, L, m³, mg, g, kg, ton, GAL, bbl, lb, cf, REV, scf, Nm³, NL, P or no unit. Time units for flow rate: /sec, /min, /hour or /day. - Selectable on-screen engineering units for total: ml, L, m³, GAL, USGAL, kg, lb, bbl or no unit. - Scaled pulse output reflecting the accumulated total. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Separate engineering units for flow rate and total. - LED backlight with adjustable intensity.
