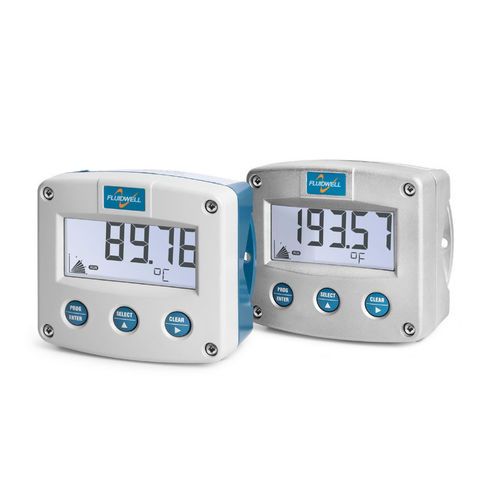

Temperature indicator F040

analog inputintrinsically safeoutdoor

The F040 is a straight forward temperature indicator with large 26mm (1") high digits. The measuring unit to be displayed below the temperature is simply selected through an alphanumeric configuration menu. No adhesive labels have to be put on the outside of the enclosure: a weather proof and user-friendly solution! The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Displays actual temperature and measuring unit. - Very large 26mm (1") high digits for temperature. - Selectable on-screen engineering units: - °C - °F - K. - Number of digits for temperature: 5½. - Piegraph indication: ten segments. - LED backlight with adjustable intensity. - Intrinsically safe according ATEX, IECEx and CSA C-US. - GRP, Aluminum or high grade stainless steel enclosure. - Auto backup of settings in EEPROM memory. - Easy configuration with clear alphanumerical display. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
