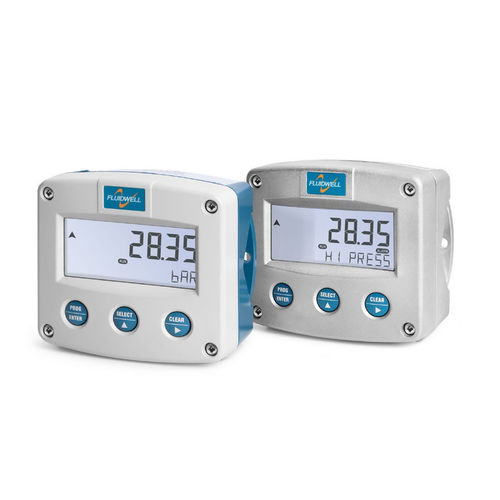

Absolute pressure indicator F053

with LCD displaypolyamidealuminum

The F053 is a versatile pressure indicator with continuous pressure monitoring feature. It has one low pressure and one high pressure alarm value. If desired, an ignore (delay) function can be set up to allow for an incorrect pressure for a certain period of time. The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - On-screen engineering units are easily configured from a comprehensive selection. - Displays clear alarm messages. - Selectable on-screen engineering units: mBar - Bar - PSI. - Pressure: six large 17mm (0.67") digits. - Pressure monitoring: two alarm values can be set: low and high pressure alarm. - Alarm values can be changed by the operator or they can be password protected. - One alarm output for high, low or both combined pressure alarms. - Intrinsically safe according ATEX, IECEx and CSA C-US. - GRP, Aluminum or high grade stainless steel enclosure. - Auto backup of settings in EEPROM memory. - Easy configuration with clear alphanumerical display. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
