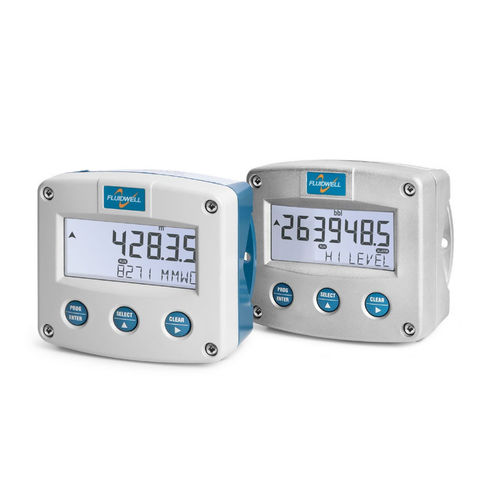

Liquids level indicator F077

electronicfor tankswith alarm function

The F077 is a versatile level indicator with linearization and continuous level monitoring feature. In addition to the average Span, eight linearization points can be entered to compensate for the tank shape. The unit will interpolate between these points to increase the accuracy. With the level monitoring feature, one low level and one high level alarm value can be set. The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers. Advantages - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - On-screen engineering units are easily configured from a comprehensive selection. - Selectable on-screen engineering units for level: ml, L, m³, GAL, USGAL, kg, lb, bbl or no -unit. - Selectable on-screen engineering units for height: mm, cm, m, mtr, inch, ft, mmwk, mmwc, cmwk, cmwc, mwk, mwc, inwc, ftwc, mBar, Bar, PSI or no unit. - Level: six large 17mm (0.67") digits. - Eight point linearization of the tank-shape - with interpolation. - Level monitoring: two alarm values can be set: low and high level alarm. - Intrinsically safe according ATEX, IECEx and CSA C-US. - Auto backup of settings in EEPROM memory. - Easy configuration with clear alphanumerical display. - Ambient temperature: -40°C to +80°C (-40°F to 176°F).
