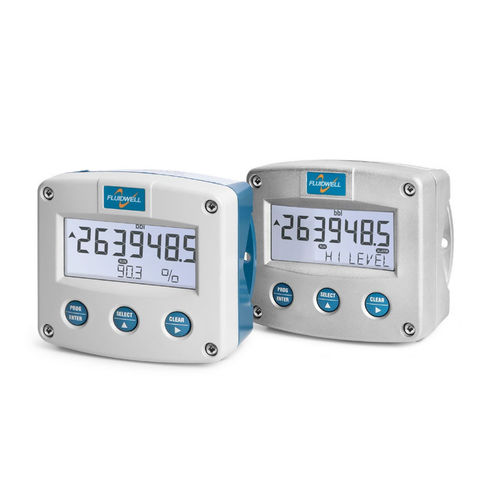

Level controller with LCD display F073

intrinsically safefor storage tanks

The F073 is a versatile level indicator with continuous level monitoring feature. It has one low level and one high level alarm value. If desired, an ignore (delay) function can be set up to allow for an incorrect level for a certain period of time. The configuration of the Span, off-set and number of decimals is done through software functions, without any sensitive DIP-switches or trimmers. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX, IECEx and CSA approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Displays clear alarm messages. - Red flashing LED backlight in case of a level alarm; intensity adjustable. - Selectable on-screen engineering units for level: ml, L, m³, GAL, USGAL, kg, lb, bbl or no -unit. - Level: six large 17mm (0.67") digits. - Level monitoring: two alarm values can be set: low and high level alarm. - Alarm values can be changed by the operator or they can be password protected. - One alarm output for high, low or both combined level alarms. - Intrinsically safe according ATEX, IECEx and CSA C-US. - Auto backup of settings in EEPROM memory. - Easy configuration with clear alphanumerical display. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
