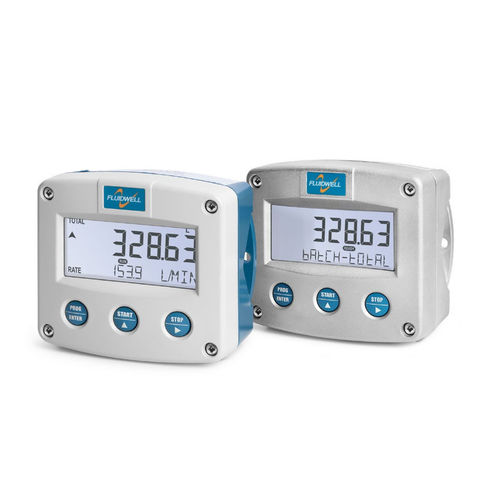

Liquids dispenser F133

electronically controlledstainless steelcompact

The F133 delivery controller / dispenser / batch controller is a unique product as it is especially designed for a controlled delivery of undefined quantities. It offers all the functionality known from gas stations to fill-up your car. The unit incorporates special functions with time delays to start a pump first, control a valve and expect a flow within a certain period of time. Moreover, the flow rate and the allowed total dispensed quantity is monitored as well. If, for whatever reason, no pulses are coming in, the delivery will be terminated after a pre-defined time. Sub-deliveries are also catered for allowing you to fill up several compartments within one and the same delivery. Several resettable and non-resettable totalizers are available as well as a batch counter. Advantages - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Suitable for filling-up multiple compartments within one delivery. - Flow rate: seven 8mm (0.31") digits. - Seven large 17mm (0.67") digits show the actual delivered quantity. - Eleven 8mm (0.31") alphanumerical digits for operator instructions. - Communication link for customized ticket printing. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Auto backup of settings and running totals in EEPROM memory.
