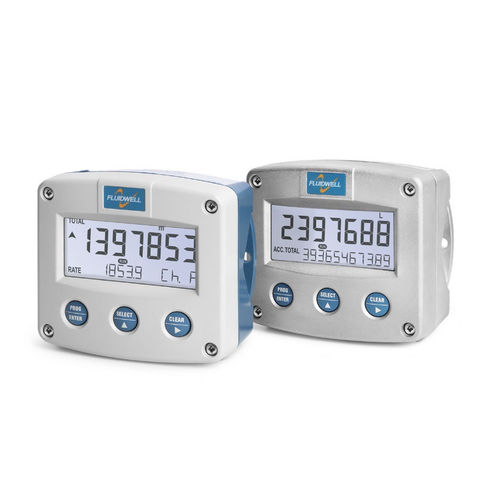

Rate indicator totalizer F111

flowLCD displayintrinsically safe

The F111 incorporates two flow rate indicator / totalizers in one enclosure, including a pulse output for each flow. There is no relationship between the flows, even different pulse signal input types can be used. For each flow, on-screen engineering units are easily configured from a comprehensive selection. The F111 can be set to show the selected information manually or with an automatic toggle function. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - For each flow one scaled pulse output. - Large digit selection for flow rate or total. - Flow rates: seven 17mm (0.67") or 8mm (0.31") digits. - Totals - resettable: seven 17mm (0.67") digits. - Accumulated totals - not resettable: eleven 8mm (0.31") digits. - Separate engineering units for flow rates and totals on the display. - GRP, Aluminum or high grade stainless steel enclosure. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
