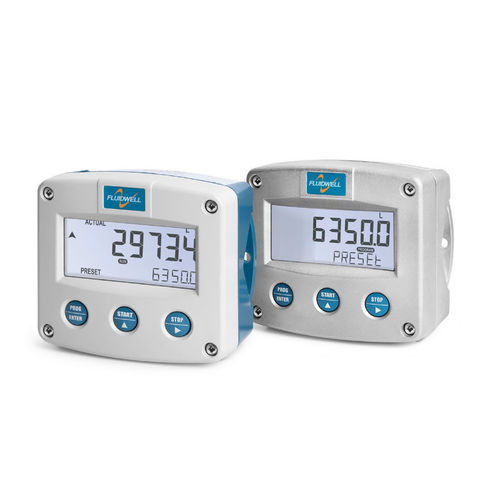

Intrinsically safe batch controller F130

The F130 is a batch controller with two control outputs for two-stage batching or one-stage control with a scaled pulse output. The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value is displayed simultaneously with the batched or remaining quantity. The automatic self-learning overrun correction will ensure an accurate batch every time. On-screen engineering units are easily configured from a comprehensive selection. Advantages - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Two-stage control for batching larger quantities. - Easy operation to enter a batch value and to control the process. - Count-up and count-down function available. - Scaled pulse output reflecting accumulated or batched total. - Actual batched quantity: seven 17mm (0.67") digits. - Preset value: seven 17mm (0.67") digits during programming and 8mm (0.31") digits during batchprocess. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
