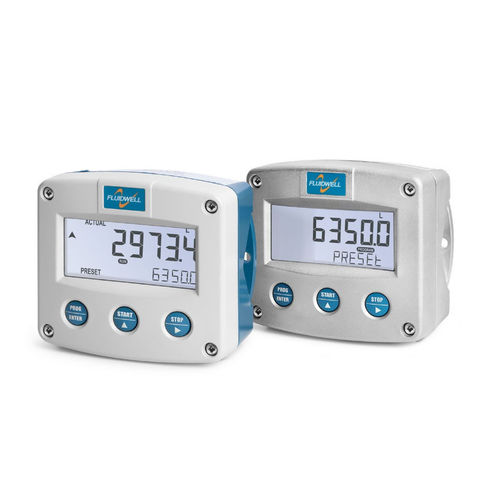

Intrinsically safe batch controller F131

The F131 batch controller offers, in addition to the standard batch control functions, an analog output signal in relation to the displayed flow rate. The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value and flow rate are displayed simultaneously with the batched or remaining quantity. The automatic self-learning overrun correction will ensure an accurate batch every time. On-screen engineering units are easily configured from a comprehensive selection. Advantages - Robust aluminum or stainless steel 316L field enclosure (IP65, IP67 / NEMA Type4X) . - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Analog output reflecting the actual flow rate. - Flow rate: seven 8mm (0.31") digits. - Two-stage control for batching larger quantities. - Self-learning overrun correction. - Easy operation to enter a batch value and to control the process. - Count-up and count-down function available. - Scaled pulse output reflecting accumulated or batched total. - Actual batched quantity: seven 17mm (0.67") digits. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - GRP, Aluminum or high grade stainless steel enclosure. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F).
