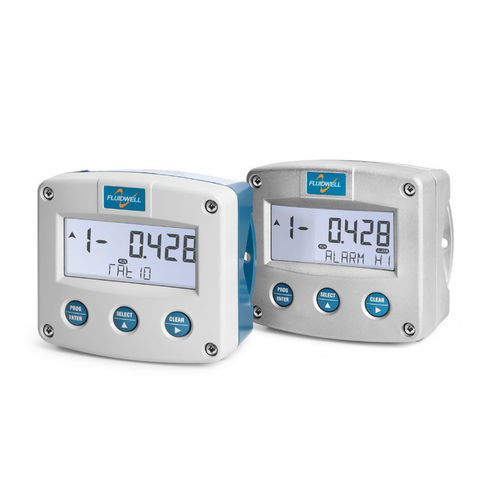

Liquids and gase flow computer F114

with counting functiondata loggerATEX

The F114 flow computer calculates the actual ratio between two separate flows. It has one low ratio and one high ratio alarm value. Special precautions are taken to allow start-up problems and incorrect ratio readings for a certain period of time. Based on the location of the flowmeters, a selection can be made out of six different formulas. The display shows the ratio, alarm values, flow rate A, total A and flow rate B, total B. On-screen engineering units are easily configured from a comprehensive selection. The ratio can be displayed as 1:__ or as a percentage. Advantages - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. Features - Calculates ratio between flow A and B. - Displays ratio, flow rate A and B and total A and B. - Ratio monitoring: two alarm values can be set: low and high ratio alarm. - Alarm values can be changed by the operator or they can be password protected. - Six ratio calculation formulas. - Ratio: seven 17mm (0.67") digits, displayed as 1:__ or percentage. - Flow rate A and B: seven 17mm (0.67") digits. - Total A and B - resettable: seven 17mm (0.67") digits. - Separate engineering units for flow rate and total on the display. - Up to three configurable alarm outputs. - Displays clear alarm messages. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
