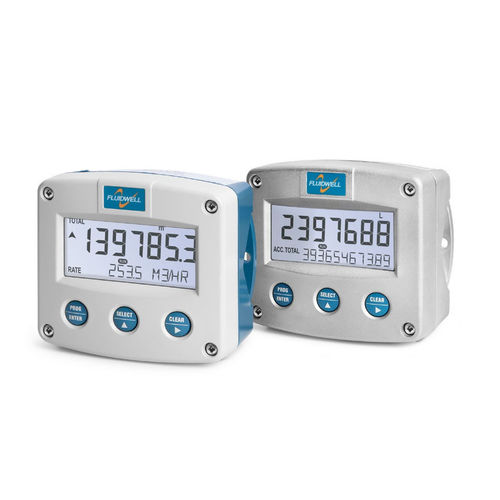

Gas flow computer F126-EG

with counting functionATEXtemperature-compensated

The F126-EG flow computer has been developed to calculate corrected gas volume at normal conditions. The corrected volumetric flow is calculated by measuring the uncorrected volumetric flow, actual line temperature and pressure which are processed with the equations stored in the flow computer. A compressibility factor can be set to approach a real gas behavior. The reference conditions can be defined as desired (e.g. 15°C or 60°F and 1.013 bar). The display shows the compensated flow rate, total, accumulated total and the actual line temperature and pressure. On-screen engineering units like Nm³ are easily configured from a comprehensive selection. Advantages - It is so rugged, a truck can even stand on it! - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Displays actual line pressure and temperature. - Analog output signal reflecting the corrected flow rate. - Displays total and flow rate simultaneously and additional accumulated total. - Flow rate: seven 8mm (0.31") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Temperature: six 17mm (0.67") digits. - Pressure: six 17mm (0.67") digits. - Engineering units for flow rate, total, temperature and pressure on the display. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
