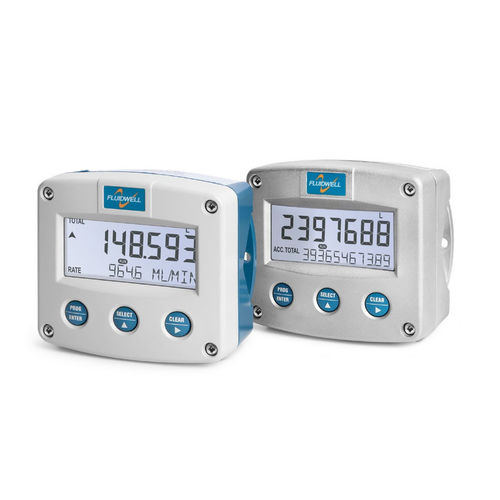

Liquid flow computer F126-EL

with counting functionATEXtemperature-compensated

The F126-EL flow computer has been developed to calculate corrected liquid volume at normal conditions. The corrected volumetric flow is calculated by measuring the uncorrected volumetric flow and actual line temperature which is processed with the thermal expansion coefficient algorithm stored in the flow computer. The reference temperature can be defined as desired (e.g. 15°C, 20°C or 60°F). The display shows the compensated flow rate, total, accumulated total and the actual line temperature. On-screen engineering units like Nm³ are easily configured from a comprehensive selection. Advantages - Intrinsically Safe available - ATEX and IECEx approval for gas and dust applications. - Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation. - Very diverse mounting possibilities: walls, pipes, panels or directly onto outdoor sensors. Features - Analog output signal reflecting the corrected flow rate. - Displays total and flow rate simultaneously and additional accumulated total. - Flow rate: seven 8mm (0.31") digits. - Total - resettable: seven 17mm (0.67") digits. - Accumulated total - not resettable: eleven 8mm (0.31") digits. - Temperature: six 17mm (0.67") digits. - Engineering units for flow rate, total and temperature on the display. - Auto backup of settings and running totals in EEPROM memory. - Ambient temperature: -40°C to +80°C (-40°F to 176°F). - Various accessories are available for this product.
