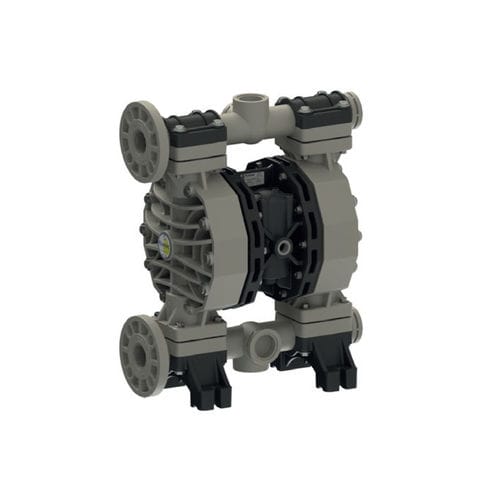

Double-diaphragm pump P400
waterfor chemicalsfor food products

Double-diaphragm pump - P400 - FLUIMAC - water / for chemicals / for food products
Double-diaphragm pump - P400 - FLUIMAC - water / for chemicals / for food products
Double-diaphragm pump - P400 - FLUIMAC - water / for chemicals / for food products - image - 2
Double-diaphragm pump - P400 - FLUIMAC - water / for chemicals / for food products - image - 3
Double-diaphragm pump - P400 - FLUIMAC - water / for chemicals / for food products - image - 4
Add to favorites
Compare this product
Go to the FLUIMAC website for more information

Characteristics

Technology
double-diaphragm
Fluid
water, for chemicals, for food products, air
Operation
pneumatic
Priming
self-priming
Mobility
stationary
Domain
for the chemical industry, for the pharmaceutical industry, agriculture, for the petrochemical industry, for the mining industry, for the paper industry, for the printing industry, for the automotive industry, for the textile industry, for marine applications
Applications
metering, suction
Material
aluminum, PP, PVDF
Other characteristics
compact
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 380 l/min
(100.38538 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Head

Min.: 0 m
(0'00" )

Max.: 80 m
(262'05" )

Fluid temperature

Min.: -4 °C
(24.8 °F)

Max.: 65 °C
(149 °F)

Length

361 mm, 445 mm, 454 mm
(14.213 in, 17.52 in, 17.874 in)

Width

260 mm
(10.24 in)

Height

502 mm, 563 mm, 564 mm
(19.76 in, 22.17 in, 22.2 in)

Weight

18.2 kg, 22.2 kg, 25.3 kg
(40.12 lb, 48.94 lb, 55.78 lb)

Description

To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory: The required flow rate of the fluid (Flow rate l/min) The total prevalence (Head H) By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
