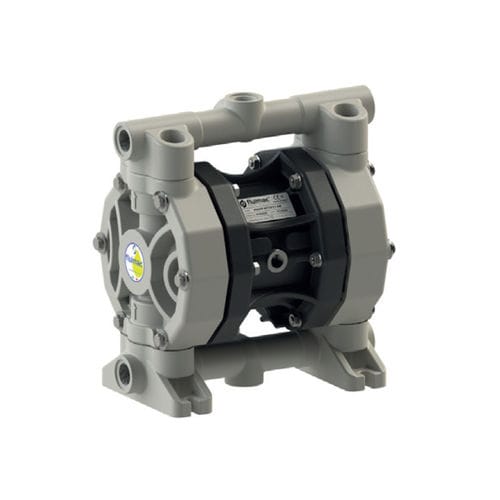

Diaphragm pump P55airpneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- extraction
- Other characteristics
- dry
- Flow
55 l/min
(14.52946 us gal/min)- Pressure
8 bar
(116.03 psi)- Head
80 m
(262'05" )- Fluid temperature
Min.: -4 °C
(24.8 °F)Max.: 95 °C
(203 °F)- Length
234 mm, 238 mm
(9 in, 9 in)- Width
156 mm
(6.14 in)- Height
245 mm, 249 mm, 268 mm
(9.65 in, 9.8 in, 10.55 in)- Weight
4 kg, 4.5 kg, 5 kg, 6 kg
(8.82 lb, 9.92 lb, 11.02 lb, 13.23 lb)
Description
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
