Diaphragm pump P90
for chemicalsairpneumatic

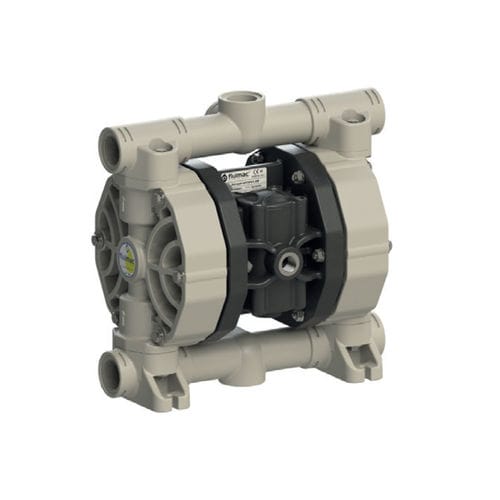

Diaphragm pump - P90 - FLUIMAC - for chemicals / air / pneumatic
Diaphragm pump - P90 - FLUIMAC - for chemicals / air / pneumatic
Diaphragm pump - P90 - FLUIMAC - for chemicals / air / pneumatic - image - 2
Diaphragm pump - P90 - FLUIMAC - for chemicals / air / pneumatic - image - 3
Diaphragm pump - P90 - FLUIMAC - for chemicals / air / pneumatic - image - 4
Add to favorites
Compare this product
Go to the FLUIMAC website for more information

Characteristics

Technology
diaphragm
Fluid
for chemicals, air
Operation
pneumatic
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
lift, suction
Other characteristics
dry
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 100 l/min
(26.41721 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Head

Min.: 0 m
(0'00" )

Max.: 80 m
(262'05" )

Fluid temperature

Min.: -20 °C
(-4 °F)

Max.: 95 °C
(203 °F)

Length

247 mm, 265 mm, 293 mm
(10 in, 10 in, 12 in)

Width

176 mm, 178 mm
(6.93 in, 7.01 in)

Height

245 mm, 251 mm, 280 mm
(9.65 in, 9.88 in, 11.02 in)

Weight

5 kg, 6 kg, 7 kg, 9 kg
(11.02 lb, 13.23 lb, 15.43 lb, 19.84 lb)

Description

To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory: The required flow rate of the fluid (Flow rate l/min) The total prevalence (Head H) By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
