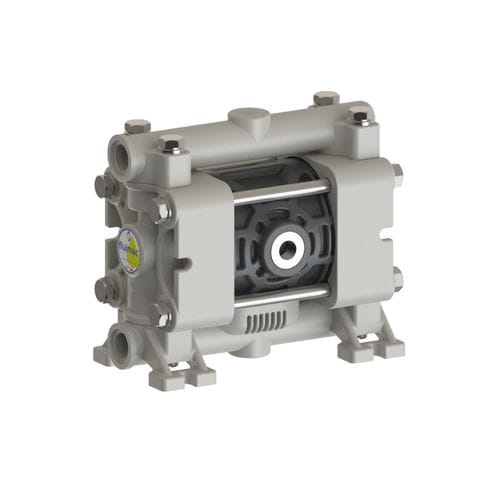

Diaphragm pump P8airpneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Flow
7 l/min
(1.8492 us gal/min)- Pressure
6 bar
(87.023 psi)- Head
60 m
(196'10" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
129 mm
(5 in)- Width
68 mm
(2.68 in)- Height
112 mm
(4.41 in)- Weight
0.84 kg
(1.85 lb)
Description
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:
The required flow rate of the fluid (Flow rate l/min)
The total prevalence (Head H)
By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.
