Vortex pump DL serieswastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial, for water treatment
- Material
- stainless steel, cast iron
- Protection level
- immersion
- Other characteristics
- vertical
- Flow
Max.: 42 m³/h
(1,483.216 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 21 m
(68'10" )Min.: 0 m
(0'00" )- Power
Max.: 4 kW
(5.44 hp)Min.: 0.6 kW
(0.82 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)
Description

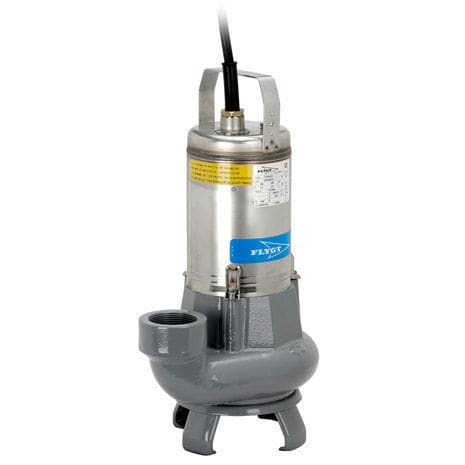

DL series submersible pumps, made of cast iron and stainless steel, are available with single channel (DL) or Vortex (DLV) impellers for large free passage.
Designed to handle solids-laden wastewater, with up to 21 m head and 42 m³/h capacity.
0,6 kW (0.8 HP) to 4 kW (5.5 HP) rated power. Solids handled up to 50 mm in diameter.
Specifications
Delivery: up to 42 m³/h
Head: up to 21 m
Power supply: both single and three-phase 50 and 60 Hz
Power: from 0.60 kW up to 1.50 kW
Temperature of pumped liquid: to 50 °C
Maximum immersion depth: 5 m
Free passage: up to 50 mm
