Vortex pump DX seriesfor wastewaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Fluid
- for wastewater
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel
- Protection level
- immersion
- Other characteristics
- with seal
- Flow
Max.: 40 m³/h
(1,412.58667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 14.5 m
(47'06" )Min.: 0 m
(0'00" )- Power
Max.: 1.5 kW
(2.04 hp)Min.: 0.55 kW
(0.75 hp)- Fluid temperature
Max.: 35 °C
(95 °F)Min.: 0 °C
(32 °F)
Description

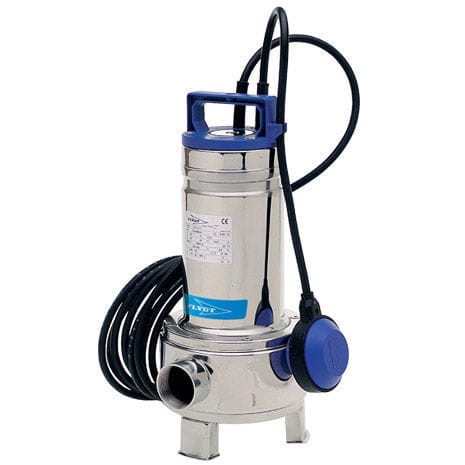

DX series, stainless steel electric pumps, are available with twin-channel or vortex impeller (DXV).
Designed to handle suspended solids up to 50mm in diameter (35 mm for DX 35 and DXV 35).
Four basic models with 0.55 (0.75 HP) to 1.5 kW (2HP) rated power.
Versions with or without float switch are available. DRIVELUB SEAL SYSTEM.
Specifications
Maximum immersion depth: 5 m
Free passage: up to 50 mm
