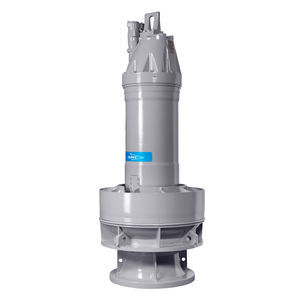

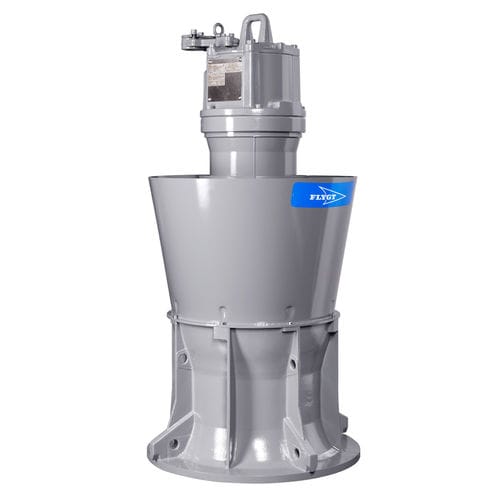

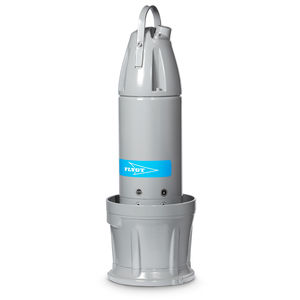

Propeller pump P 7076

waterelectricsubmersible

Cost-efficient axial flow propeller pump The P 7076 pump offers a cost-efficient solution for a given flow, due to the one-piece casted propeller made in gray iron. The Flygt P7076 submersible pump is simple to install in its 1000 mm column. It automatically seats on the flange, avoiding shaft-alignment problems. The pump is easily hoisted for servicing, thanks to Flygt’s smart installation concept. Robust and reliable design Motor designed for submersible use. Heat is concentrated around the stator core for improved cooling properties. Martensitic stainless steel shaft gives maximum strength and corrosion resistance. Optional duplex stainless steel shaft for superior corrosion resistance. Two sets of corrosion-resistant tungsten carbide (WCCR) mechanical shaft seals work independently to provide double security. SUBCAB® motor cable specially developed for submersible use. Column installation (L) Flygt discharge components combine in multiple column installation (L) configurations to match your pump station layout: Free-hanging steel column or cast in concrete Open top or side outlet discharge Optional watertight cover with pressurized discharge Watertight cover with siphon system Horizontal installation in pipe Submerged outlet with flap valve (shown below)
