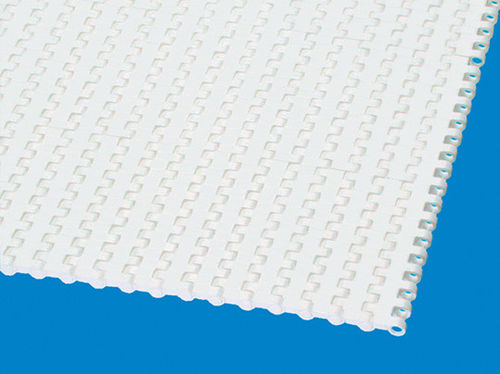

Modular conveyor belt S4.1 series

roundsmoothplastic

Straight running belts l Pitch 14 mm (0.55 in) Belts for light to medium-duty food and non-food applications Design characteristics • Small pitch belt for applications requiring small transfer gaps • Hinges that open wide and flat channels on the underside ensure the belt is easy to clean • Unique sprocket design with rounded tooth edges provides ideal load distribution • Wide sprocket teeth ensure superior sprocket engagement and strength Basic data • Pitch : 14 mm (0.55 in) • Belt width min. : 25 mm (0.98) • Width increments : 12.5 mm (0.5 in) • Hinge pins : Made of plastic (PE, PP, PBT) 0 % Opening | Flat top Closed, smooth surface Flat top surface 0 % Opening | Inverted pyramid Closed surface Inverted pyramid pattern for superb release characteristics when conveying wet or sticky products 0 % Opening | Friction top (Design 1) Closed surface Friction top with slightly elevated triangular shapes to reduce contact area/increase contact pressure to optimise grip and to channel dirt away from the friction surface 21 % Opening | Flat top Large open area (21 %) for excellent air circulation and drainage Smooth surface 21 % Opening | Nub top (round studs) Large open area (21 %) for excellent air circulation and drainage Nub top surface for good release of wet and sticky products Version available without round studs at the side (25 mm indent) ProSnap Quick-Release for easy, quick and toolless opening and closing of the belt One pin solution for entire belt width
