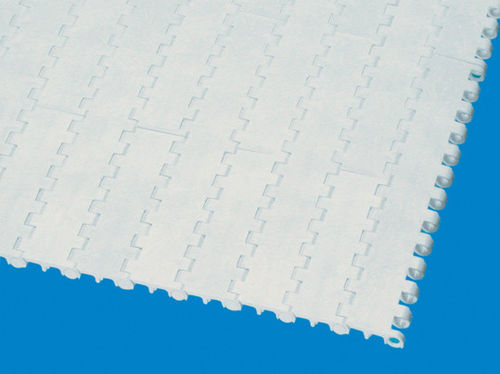

Modular conveyor belt S2 series

smoothplasticsmooth

Straight running belts l Pitch 25 mm (0.98 in) Belts for light-duty food and container handling applications • Hinges that open wide provides an easy-to-clean belt design • Low belt weight reduces energy consumption • Open edge design on flat top versions for unhindered drainage and closed edge design on grid top and raised rib versions Basic data • Pitch : 25 mm (0.98 in) • Belt width min. : 50 mm (1.97 in) • 100 mm (3.9 in) for belts with FRT-pattern • Width increments : 16.66 mm (0.7 in) • Hinge pins : Made of plastic (PE, PP, PBT) 0 % Opening | Flat top Closed, smooth surface Flat top surface 12 % Opening | Flat top Open version (12 %) for excellent air circulation and drainage Flat top surface Smooth surface 0 % Opening | Friction top (Design 1) Closed surface Friction top provides increased grip 57 % Opening | Grid top Large open area (57 %) allows minimal product contact For excellent air circulation and drainage Grid top surface 57 % Opening | Raised rib Large open area (57 %) for excellent air circulation and drainage Raised ribs for minimal product contact and smooth product transfer using finger transfer plates
