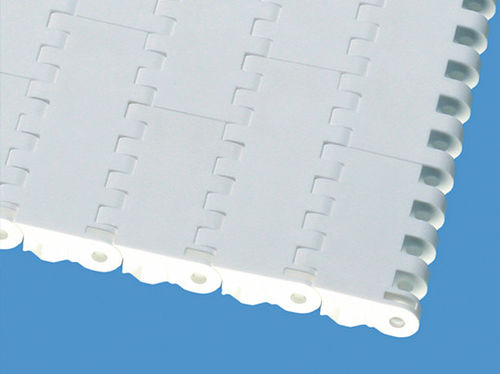

Modular conveyor belt S7 series

plasticsmoothindustrial

Straight running belts l Pitch 40 mm (1.57 in) Belts for heavy-duty non-food applications Design characteristics • Closed-hinge design provides high belt pull capacity • Small-pitch relative to belt thickness makes belt suitable for compact, heavily loaded conveyors • Robust design with large surface contact area ensures superior wear life • Closed solid edge • Flame retardant version available (PXX-HC – in line with DIN EN 13501-1) Basic data • Pitch : 40 mm (1.57 in) • Belt width min. : 40 mm (1.57 in) 360 mm (14.2 in) for belts with FRT-surface (side modules only available without FRT-surface) • Width increments : 20 mm (0.8 in) FRT-surface on request • Hinge pins : Made of plastic (PBT) or stainless steel 0% Opening | Flat top Closed, smooth surface Flat top surface 0% Opening | Slip-resistant Closed surface Slip-resistant surface, pleasant to walk and kneel on Flat top surface 6% Opening | Flat top Open area (6 %) increases drainage capacity Smooth surface 0% Opening | Non skid Closed surface Non-skid surface for safety when walking on belt 6 % Opening | Non skid Open area (6 %) Non-skid surface with drainage holes for safety when walking on wet belts 0 % Opening | Friction top (Design 1) Closed surface Friction top version with replaceable rubber pads provides increased grip Pin Retained Rollers For applications where low back pressure accumulation or product separation is required
