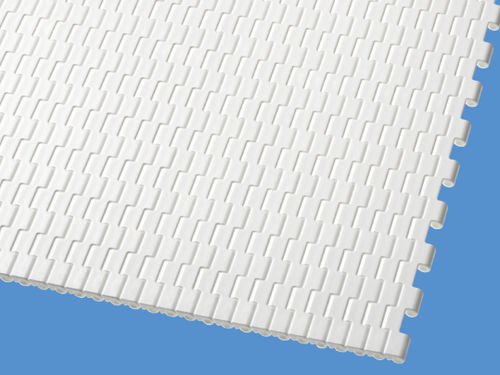

Modular conveyor belt S13 series

smoothPOMPBT

Straight running belts l Pitch 8 mm (0.31 in) Belts for light to medium-duty food and non-food nose bar applications Design characteristics • Micro pitch belt with small transfer gaps • Designed to run over nosebars/knife edges or rollers with a radius down to 3 mm (0.12 in) allowing, precise transfer of even the smallest products • Versatile for conveying, drying and cooling applications • Optimal design of sprocket teeth, and belt underside pro- • vides superior sprocket engagement, safe belt tracking and favorable cleanability • Belt and sprocket design ensures superior load transmission and belt pull capacity • Headless pin making it very easy to install and remove the belt for maintenance Basic data • Pitch : 8 mm (0.31 in) • Belt width min. : 102 mm (4 in) • Width increments : 25.4 mm (1 in) • Hinge pins : 3 mm (0.12 in) made of plastic (PBT) 0% Opening | Flat top Closed, smooth surface Flat top surface 0% Opening | Inverted pyramid Closed surface with inverted pyramid pattern Provides superb release characteristics when conveying wet or sticky products 0% Opening | Pointed studs Closed surface and pointed studs, cone top surface pattern for superior grip 34% Opening | Smooth surface Open area (34%) for excellent air circulation and drainage, 47% contact area (Largest opening: 11.4 x 4.6 mm/0.45 x 0.18 in); smooth surface; easy-to-clean ProSnap Quick-Release for easy, quick and toolless opening and closing of the belt One pin solution for entire belt width
