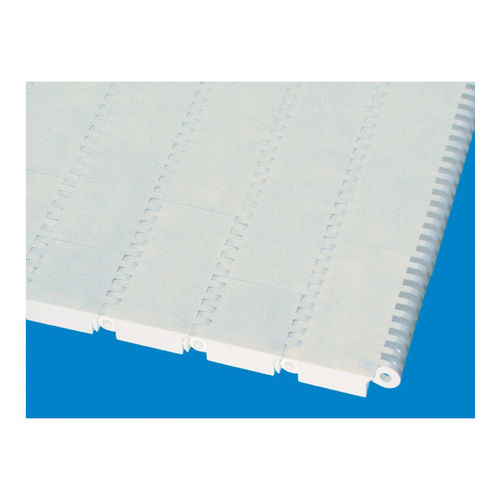

Modular conveyor belt S1 series

roundsmoothmedium

Straight running belts l Pitch 50 mm (1.97 in) Belts for medium to heavy-duty industrial conveying applications • Narrow, closed hinge design provides high belt pull capacity • Rigid module design makes belt suitable for long conveyors • Closed solid edge design Basic data • Pitch : 50 mm (1.97 in) • Belt width min. : 50 mm (1.97 in) 250 mm (9.8 in) for belts with FRT-pattern (side modules only available without FRT-pattern) • Width increments : 10 mm (0.4 in) • Hinge pins : Made of plastic, (PE, PP, PBT), as a special type made of stainless steel S1-0 FLT | 0 % Opening | Flat top Closed, smooth surface Flat top surface S1-0 SRS | 0 % Opening | Slip-resistant surface Closed surface Slip-resistant surface, pleasant to walk and kneel on S1-18 FLT | 18 % Opening | Flat top Open version (18 %) for excellent air circulation and drainage Flat top surface Smooth surface S1-0 NSK | 0 % Opening | Non skid Closed surface Non-skid surface for increased safety when walking on belt S1-0 FRT1 | 0 % Opening | Friction top (Design 1) Closed surface Friction top with replace able rubber pads for increased grip Sprockets In different sizes with round or square sprocket bore Profiles In different heights and designs for inclines Side guards In different heights for retention of bulk products
