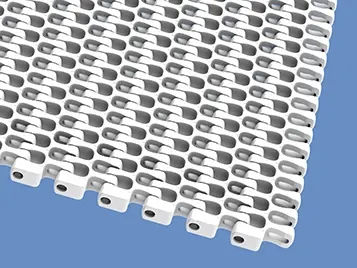

Spiral conveyor belt S18 series

plasticPPfor the food industry

Side flexing and spiral belt | Pitch 25.4 mm (1 in) Belts for light to medium-duty food and non-food applications Design characteristics • All plastic light weight belt suitable for both straight and radius conveying • 44 % open area for excellent air circulation and drainage • Narrow grid structure of the belt ensures secure handling of even small products • High curve belt pull capacity offering improved capacity and reliability • Easy to clean and suitable for conveying of food including direct food contact • Superior lateral stiffness and rigidity for an all plastic belt Basic data • Pitch : 25.4 mm (1 in) • Belt width min. : 149.4 mm (5.88 in) • Belt width max. : 1219 mm (48 in) • Width increments : 12.7 mm (0.5 in) • Hinge pins : 4.2 mm (0.17 in) made of plastic (PLX, PP) 44% Opening | Grid top Open area (44%) for excellent air circulation and drainage 42% contact area (Largest opening: 9 x 7.9 mm/0.35 x 0.31 in) Lattice-shape surface 44% Opening | Grid top • guided Open area (44%) for excellent air circulation and drainage 42% contact area (Largest opening: 9 x 7.9 mm/0.35 x 0.31 in) Lattice-shape surface and Hold Down Tabs Allows utilization of the entire belt width 44 % Opening | High Deck Open area (44 %) for excellent air circulation and drainage 42 % contact area (Largest opening: 9 x 7.9 mm/0.35 x 0.31 in) Lattice-shape surface Collapse factor (Cc) = 2.2 Allows utilization of the entire belt width and beyond
