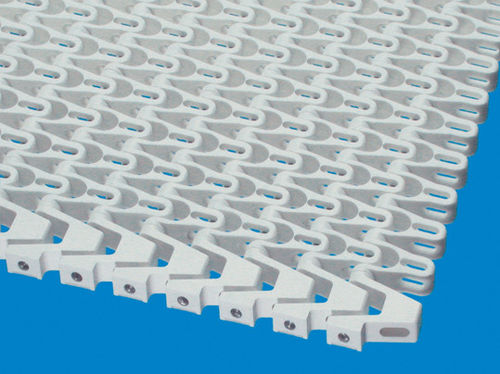

Modular conveyor belt S5 series

spiralroundplastic

Side flexing and spiral belts Pitch 25 mm (0.98 in) Design characteristics • Suitable for both straight and radius conveying • up to 45 % open area for excellent air circulation • and drainage • Stainless steel hinge pins for high load capacity, • lateral stiffness, fewer belt supports and minimum belt lifting in curves • No potential belt edge catch points due to safe fixing of hinge pins Basic data • Pitch : 25 mm (0.98) • Belt width min. : 100 mm (3.9 in), 175 mm (6.9 in) for S5 ST • Width increments : 25 mm (0.98) • Hinge pins : Stainless steel 45 % Opening | Grid top Open area (45 %) for excellent air circulation and drainage Lattice shaped surface 45 % Opening | Nub top (round studs) Open area (45 %) for excellent air circulation and drainage Lattice shaped surface with 3.0 mm (0.12 in) high round studs and 8 % contact area Side modules without NTP-surface Excellent air circulation and drainage Integrated friction pads (raised) increase surface friction and provide gentle grip Side modules without FRT-surface 33 % Opening | Friction top (Design 2) Open area (33 % for full FRT2 surface area) for excellent air circulation and drainage Integrated friction pads (flat) provide gentle grip 45 % Opening | Grid top · guided Excellent air circulation and drainage Lattice shaped surface and Hold Down tabs Allows utilisation of the entire belt width 45 % Opening | Nub top (round studs) · guided Excellent air circulation and drainage With round studs for increased grip (8 % contact area) Allows utilisation of the entire belt width Side modules only available without NTP-pattern
