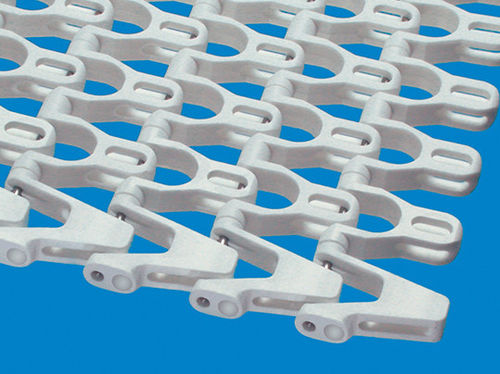

Spiral conveyor belt S9 series

mediumnub topsmooth

Side flexing and spiral belts l Pitch 50 mm (1.97 in) Belts for medium to heavy-duty food and non-food applications Design characteristics • Suitable for both straight and radius conveying • 57 % open area for excellent air circulation and drainage • Stainless steel hinge pins for high load capacity, lateral stiffness, less belt supports and minimum belt lifting in curves • No potential belt edge catch points due to safe fixing of hinge pin Basic data • Pitch : 50 mm (1.97 in) • Belt width min. : 100 mm (3.9 in) • Width increments : 50 mm (1.97 in) • Hinge pins : Stainless steel 57% Opening | Grid top Open area (57 %) for excellent air circulation and drainage Lattice-shaped surface 57% Opening | Nub top (round studs) Open area (57 %) for excellent air circulation and drainage Lattice-shaped surface with 3.0 mm (0.12 in) high round studs 4 % contact area Nub top surface for increased grip and reduced contact area for good release 57% Opening | Grid top · guided Open area (57 %) for excellent air circulation and drainage Lattice-shaped surface Guided version (G) allows utilisation of the entire belt width 57% Opening | Nub top (round studs) · guided Open area (57 %) for excellent air circulation and drainage With round studs for increased grip (4 % contact area) Guided version (G) allows utilisation of the entire belt width 57% Opening Open area (57 %) for excellent air circulation and drainage Special edge modules with noses (F2 –F8) of varying size ensure smooth belt operation when the system turn radius is greater than the minimum belt turn radius
