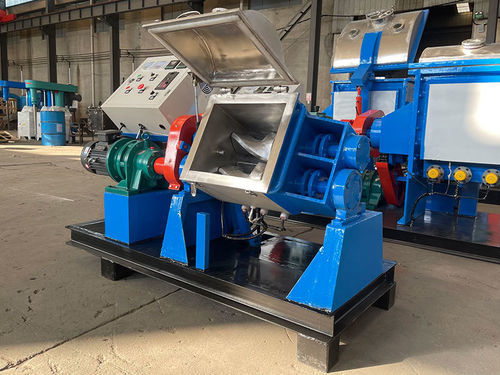

Sigma blade mixer

continuousbatchsolid/liquid

Product overview
JCT Machinery Sigma mixer for the production of Carboxymethyl Cellulose (CMC). Suitable for continuous or batch processing of high‑viscosity formulations, the mixer provides kneading, shearing and temperature control capabilities required in CMC manufacturing.

What is CMC?
CMC (Carboxymethyl Cellulose) is a water‑soluble cellulose derivative produced by chemical modification of natural cellulose. It is used as a thickener, binder and rheology modifier across food, pharmaceutical, chemical, textile and paper industries.

Role of CMC in gunpowder making

• 1. Adhesiveness: CMC bonds particles to form stable granules or strips, improving particle integrity during processing, storage and use.
• 2. Thickening and rheology adjustment: Acts as a thickener to control slurry viscosity and ensure uniform distribution during coating or extrusion steps.
• 3. Combustibility: As an organic binder, CMC combusts without leaving harmful residues, supporting stable burn characteristics.
• 4. Stability: Chemical stability under varied storage conditions helps preserve formulation properties over time.
• 5. Safety: Low tendency for spontaneous ignition or explosion under normal processing conditions, making it a commonly used additive.

Why the Sigma mixer is suitable for CMC making

• 1. Efficient mixing: Twin‑arm sigma geometry ensures intensive kneading and rapid homogenisation of multi‑ingredient, high‑viscosity batches.
• 2. Handling high‑viscosity materials: Strong shearing and kneading action prevents unmixed zones and enables processing of pastes and heavy slurries.
• 3. Temperature control: Jacketed vessel or equivalent system provides precise temperature management to optimise reaction and dispersion steps.
• 4. Effective shear: High shear forces promote dispersion and dissolution of solids, improving final product viscosity and uniformity.
• 5. Sealing and contamination control: Robust sealing minimises ingress/egress of materials and supports handling of volatile or sensitive components.

Main applications
Industrial production of CMC and formulations requiring controlled rheology, adhesive properties or binder functionality; relevant sectors include chemical manufacturing, paper, textiles, pharmaceuticals and specialty materials.

Features / technical specifications

• Twin‑arm Sigma paddle design for intense kneading of high‑viscosity materials.
• High shear and kneading capability to eliminate dead zones.
• Jacketed vessel or integrated temperature control for process stability.
• Mechanical sealing and optional solvent‑handling provisions to reduce contamination and emissions.
• Suitable for batch and semi‑continuous production scales where rheology control is required.
