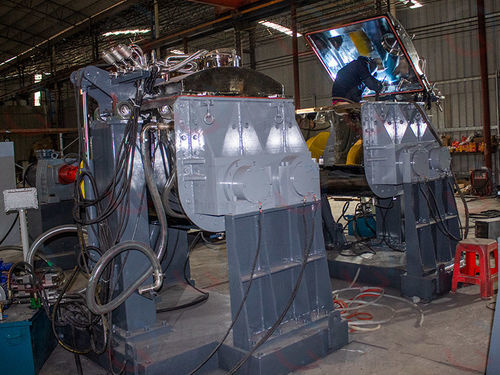

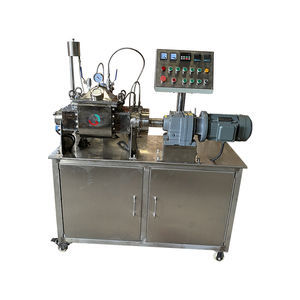

Sigma blade mixer

batchsolid/liquidfor high-viscosity materials

Product overview
Propellant materials present extremely high viscosity and are highly sensitive to friction, impact and static electricity. This explosion-proof sigma blade mixer is engineered for safe handling of energetic propellants, minimising spark risk while ensuring clean, residue-free mixing and tight process control.

Key features

• Non-sparking mechanical design
• Dual-redundant braking system
• Clean, residue-free mixing and polished contact surfaces

Explosion-proof Propellant Sigma Blade Mixer Technical Specifications (table)
Project: Configuration requirements
Drive Power: Customized to material viscosity (typically 30%–50% above standard)
Agitator Type: Thickened Σ (sigma) blades, high-torque design
Sealing Medium: Nitrogen purge or special flame-retardant lubricant
Monitoring Device: Explosion-proof video surveillance, infrared thermography, vibration monitoring

Main Protection Solution For Explosion-proof Propellant Sigma Blade Mixer

• System explosion rating: motor, gearbox, sensors (pressure, temperature, displacement) and electrical control cabinet compliant with Ex d IIB/IIC T4 or higher.
• Non-sparking design: precision minimal clearance between agitator and cylinder to prevent metal-to-metal friction sparks.
• Contact materials: SS304/316 or special stainless steel with ultra-high-gloss mirror finish (Ra <0.2μm) to reduce frictional heat.
• Intrinsic safe sealing: multiple mechanical seals and positive-pressure protection via inert gas purge (e.g., nitrogen) to prevent solvent leakage and oxygen ingress.
• Remote centralized control: DCS-compatible remote operation to ensure human-machine isolation.

Special Design of Explosion-proof Propellant Sigma Blade Mixer

• 1. Precise temperature control response
  • Full-around water jacket: circulating fluid for cylinder body, side plates and hollow agitator interior.
  • Safety interlock: automatic emergency cooling and alarm when material temperature exceeds a preset threshold (example 60℃).
• 2. High vacuum degassing
  • Air-bubble removal before casting is required to preserve combustion rate and mechanical strength.
  • Mixer capable of maintaining high vacuum (≈ -0.098 MPa or better) with special condenser for solvent recovery.
• 3. Slow start and stepless speed regulation
  • Variable frequency drive for smooth start-up and continuous speed control to avoid instantaneous high-torque shear overheating.

Main protection & operational measures

• Use of Ex d IIB/IIC T4 or higher rated components for motors, reducers, sensors and control cabinets.
• Precision clearances and non-sparking mechanical interfaces to eliminate friction sparks.
• Material selection and surface finish: SS304/316 or special stainless steels, mirror polish Ra <0.2μm on contact parts.
• Sealing strategy: multiple mechanical seals plus inert-gas purge for positive-pressure protection.
• Continuous monitoring: explosion-proof CCTV, infrared thermography and vibration sensors for real-time condition awareness.

Our service

• Extended warranty for main components: 12-month warranty on all equipment.
• 24/7 emergency response: video-based diagnostic solution promised within 8 hours of fault notification.
• Lifetime parts supply: customer equipment records to ensure access to genuine spare parts (mechanical seals, gaskets, bushings).
• Free equipment trial: customers supply materials; company provides trial runs at no charge prior to purchase.

Characteristics / Technical specifications

• Model type: Explosion-proof propellant sigma blade mixer
• Drive power: Customized to viscosity (typically +30% to +50% above standard)
• Agitator: Thickened Σ blades for high torque and effective mixing of very viscous materials
• Sealing medium: Nitrogen purge or flame-retardant lubricant; multiple mechanical seals
• Explosion-proof rating: System components meet Ex d IIB/IIC T4 or higher
• Monitoring: Explosion-proof video, infrared thermography, vibration monitoring
• Contact surface finish: Ultra-high-gloss mirror polish, Ra <0.2μm
• Vacuum capability: High-vacuum degassing to ≈ -0.098 MPa; condenser for solvent recovery
• Temperature control: Full-around water jacket and hollow agitator; safety interlock and emergency cooling above preset threshold (e.g., 60℃)
• Drive control: VFD for soft start and stepless speed regulation
• Safety features: Non-sparking design, precision clearances, inert-gas positive-pressure protection, remote DCS-compatible control
