Sigma blade mixer NHZ-5batchsolid/liquidfor the food industry
Add to favorites
Compare this product
Characteristics
- Technology
- sigma blade
- Batch/continuous
- batch
- Product type
- solid/liquid
- Applications
- for the food industry, for the chemical industry, adhesive, for the pharmaceutical industry, laboratory, for the plastics industry, for pasty products, for the rubber industry
- Other characteristics
- stainless steel, compact, automatic, high-shear, double, hydraulic, tilting tank
- Engine power
Max.: 2.2 kW
(2.99 hp)Min.: 1.1 kW
(1.5 hp)- Capacity
5 l
(1.32 gal)
Description
Overview

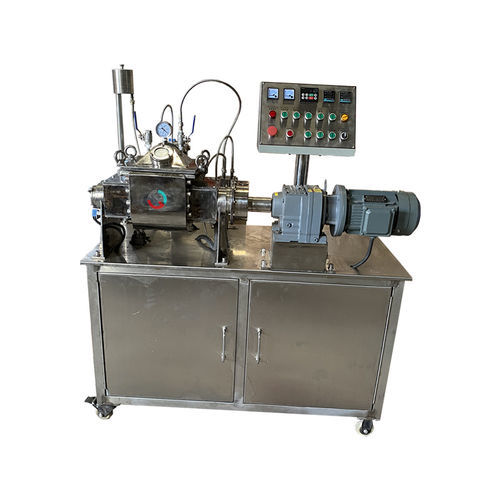

JCT Machinery's 5 L laboratory sigma mixer (model NHZ-5) is a compact sigma (Z-blade) mixer designed for mixing and kneading high-viscosity materials. Contact parts are made from wear-resistant materials such as stainless steel. Intended for laboratory and small-batch production in chemical, food, pharmaceutical, rubber, plastic and adhesive industries. The control interface is user-oriented and easy to operate. A production batch is available; earliest shipping within 1 week.
Product data
Model: NHZ-5
Full volume (L): 5
Motor power (kW): 1.1-2.2
Discharge mode: Hydraulic turning cylinder
Heating and cooling modes
Blade design
The mixer uses double Z (sigma, ∑) blades. During rotation the blades generate strong shear and compression forces to press, knead and homogenize high-viscosity materials, delivering uniform and consistent batches.
Applications
Operation and control
The electrical cabinet is bilingual and ergonomically labeled for straightforward operation. Optional automatic control systems are available to enable automated production and improve efficiency and product consistency.
Technical specifications / characteristics
JCT Machinery's 5 L laboratory sigma mixer (model NHZ-5) is a compact sigma (Z-blade) mixer designed for mixing and kneading high-viscosity materials. Contact parts are made from wear-resistant materials such as stainless steel. Intended for laboratory and small-batch production in chemical, food, pharmaceutical, rubber, plastic and adhesive industries. The control interface is user-oriented and easy to operate. A production batch is available; earliest shipping within 1 week.
Product data
Model: NHZ-5
Full volume (L): 5
Motor power (kW): 1.1-2.2
Discharge mode: Hydraulic turning cylinder
Heating and cooling modes
- Heat transfer oil circulation
- Electric jacket heating
- Steam heating
- Cold water or cold oil circulation cooling
Blade design
The mixer uses double Z (sigma, ∑) blades. During rotation the blades generate strong shear and compression forces to press, knead and homogenize high-viscosity materials, delivering uniform and consistent batches.
Applications
- Silicone sealant
- Silicone rubber
- Hot-melt adhesive
- Mold adhesive
- CMC
- Modeling clay / putty
- Butyl rubber
- Silicone grease
- Rubber compounds
Operation and control
The electrical cabinet is bilingual and ergonomically labeled for straightforward operation. Optional automatic control systems are available to enable automated production and improve efficiency and product consistency.
Technical specifications / characteristics
- Model: NHZ-5
- Capacity: 5 L (full volume)
- Motor power: 1.1-2.2 kW
- Discharge: Hydraulic turning cylinder
- Blade type: Double Z (sigma, ∑) for strong shear and compression
- Materials: Wear-resistant materials; stainless steel for product-contact surfaces
- Heating/cooling: Heat transfer oil circulation, electric jacket, steam, circulating cold water or oil
- Typical industries: Chemical, food, pharmaceutical, rubber, plastics, adhesives
- Control: User-oriented interface, bilingual labeling, optional automatic control
- Availability: Batch inventory available; earliest shipping about 1 week
