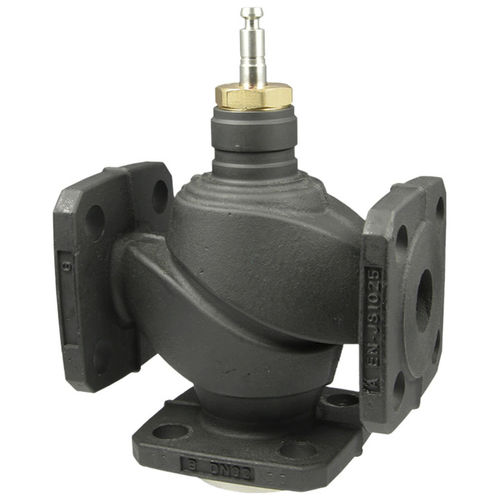

Pneumatic valve BUG0 series
controlregulatingflange

pneumatic valve
pneumatic valve
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Function
control, regulating
Body
flange, stainless steel, PTFE, silicone
Applications
flange, washer, bar, flange, box
Number of channels
3-way
Other characteristics
grease
DN

15 mm, 20 mm, 25 mm
(0.591 in, 0.787 in, 0.984 in)

Pressure

16 bar, 25 bar
(232.1 psi, 362.6 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -20 °C
(-4 °F)

Flow rate

Max.: 10 m³/h
(353.15 ft³/h)

Min.: 1 m³/h
(35.31 ft³/h)

Description

How energy efficiency is improved Efficiency means precise and reliable control Features Continuous control of cold and hot water in closed circuits In combination with pneumatic actuators AVP242, AVP243 and AVP244 Water quality as per VDI 2035 Valve with flange connection as per EN 1092-2, seal form B Nominal pressure 25 bar, except BUG065F316, nominal pressure 16 bar Regulating valve, free of silicone grease, painted black The control passage is closed when the spindle is moved out Used as a control valve Valve body made of ductile cast iron Stainless-steel seat and spindle Plugs of nominal diameter DN 15...50 made of stainless steel with glass-fibre-reinforced PTFE sealing ring Plugs of nominal diameter DN 65...150 made of stainless steel with metal-to-metal seal Maintenance-free stuffing box in brass with spring-loaded PTFE washer
