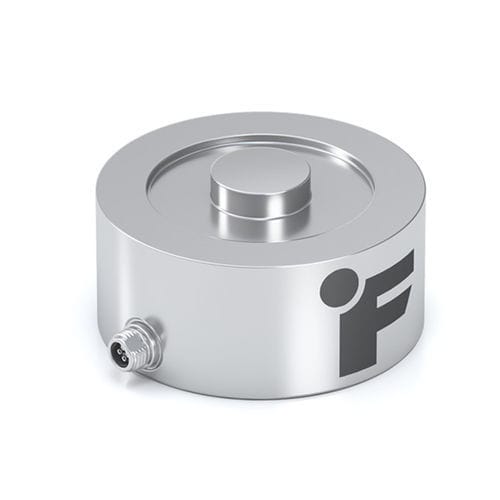

Button type load cell LLB500 series
compressionstrain gaugestainless steel

button type load cell
button type load cell
button type load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
button type
Technology
strain gauge
Other characteristics
stainless steel, subminiature, high-capacity
Rated load

15,000 lb, 20,000 lb, 30,000 lb (6,803.89 kg)

Description

Model LLB500 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB500 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 2.0” outside diameter and a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The standard LLB500 Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping. Model Features •Low Deflection •Robust Strain Relief •17-4 Stainless Steel Construction •Compression •Utilizes Metal Foil Strain Gauge Technolog
