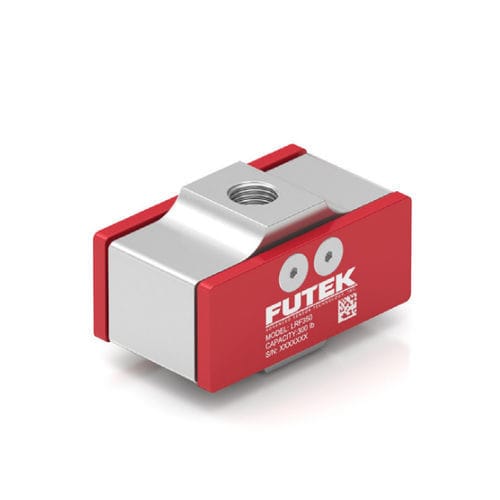

Tension/compression load cell LRF350 series
planar beamstrain gaugecompact

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
planar beam
Technology
strain gauge
Other characteristics
compact, aluminum construction
Rated load

200 lb, 300 lb, 500 lb, 1,000 lb (90.72 kg)

Description

The Low Profile Tension & Compression Load Cell offers a compact design for inline loading applications. With a height of only 1”, the LRF350 Low Profile Tension & Compression Load Cell is a great selection for tight spaces. It is well suited for high capacity requirements and for any applications that require a lower capacity range, please refer to the LRF300 or LRF325. With all of its design features the Low Profile Tension & Compression Load Cell has a high accuracy with a Nonlinearity of ±0.1%, deflection of 0.003” to 0.006” nominal and an operating temperature of -60° F to 200° F. This Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Model Features •Light weight •For use in both tension and compression •Low profile •Easy to integrate on flat loading surfaces •High accuracy
