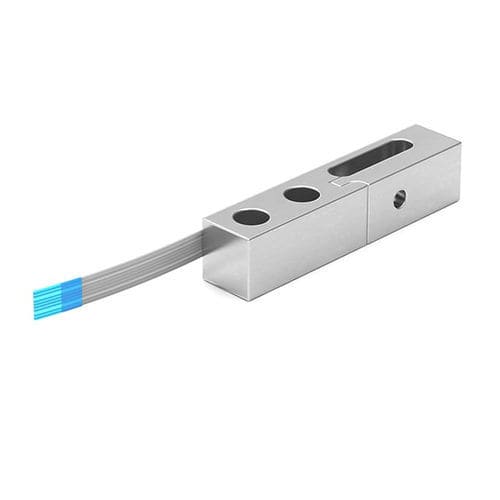

Tension/compression load cell LSM200
beam typestrain gaugeflexible

tension/compression load cell
tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
beam type
Technology
strain gauge
Other characteristics
aluminum, with overload protection, flexible
Rated force

44.5 N

Rated load

10 lb
(4.54 kg)

Length

1.8 in

Height

8 mm, 10 mm
(0.31 in, 0.39 in)

Description

The LSM200 Beam Load Cell offers a slim design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression, the Beam Load Cell has a length of 1.75”, width of 0.38” and with a height of 0.36” it is well suited for tight spaces. The LSM200 is offered in 2024 Aluminum (10 lb) and it has a 2” Molex flexible 4 conductor type (1 mm pitch) cable. Although the Beam Load Cell is specifically built for low capacity applications, a built in overload protection provides the unit over 10 times the capacity that could take place during installation. As a part of FUTEK’s original product line, the Beam Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making it available for 24 hour shipping. •Ideal for OEM Applications •Single Point Construction •1000 Ohm high resistance bridge •Weight: 3 oz
