Planar beam force sensor FFP350
strain gaugeminiature

planar beam force sensor
planar beam force sensor
Add to favorites
Compare this product


Characteristics

Form
planar beam
Technology
strain gauge
Other characteristics
miniature
Rated load

Min.: 0 lb (0 kg)

Max.: 1 lb (0.45 kg)

Description

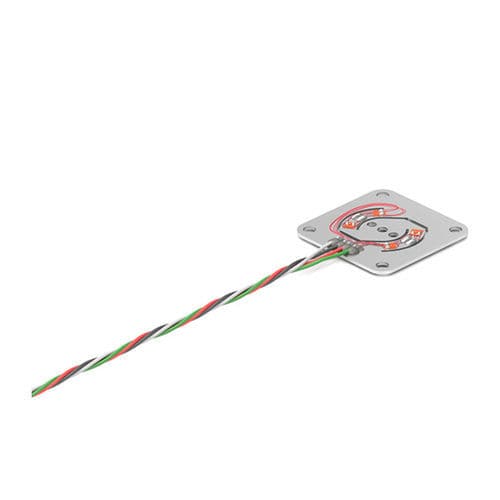

FUTEK’s FFP350 Force Sensor is designed for measuring force, surface pressure, and displacement. These sensors are a cost effective and reliable OEM solution for high volume applications. The FFP350 Force Sensor incorporates the balancing, compensating and conductive elements into its strain gauge which is laminated on to the 300-Stainless Steel flexure. With its thin, miniature design, the FFP350 Force Sensor is also useful in applications where vertical space is limited. It is available in a 1 lb capacity and it is ideal for use in process control, medical instrumentation, robotics, and automotive applications. The FFP350 Force Sensor is manufactured in USA. Model Features - Designed for OEM use - High Volume Applications - Light Weight: 10 g - Low Cost
