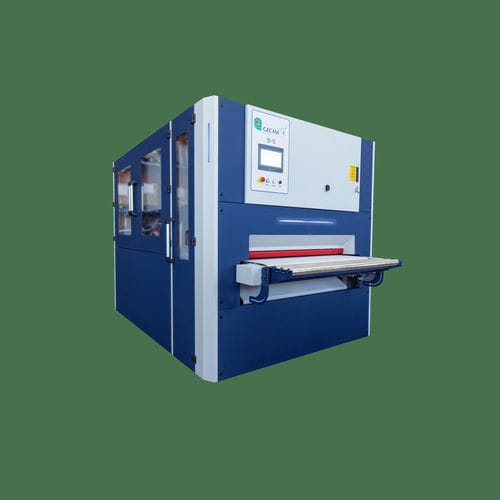

Edge rounding deburring machine G135 RB8

brushbeltfinishing

Two group sander ideal for deburring, rounding edges and obtaining a perfect finish, thanks to the initial abrasive belt for removing excess burr and a carousel group with 8 abrasive brushes that rotate both clockwise and counterclockwise for a uniform result on the whole piece. The perfect machine for an excellent finishing quality. Independent control of the work groups via electronic touch screen panel, variable speed of the groups for a better finishing result. Table with vacuum system to guarantee the seal of the piece during processing. Quick release system for changing brushes and belt. The staggered arrangement of the brushes means allow that during the rotation the piece is always processed all over. Also suitable for processing surface treated material. Technical specifications Abrasive belt speed - mm 1370 x 2200 Abrasive brush dimension - mm 300 x 532 Rolling brushes speed - rpm 200-800 Working thickness min/max - mm 0,4/120 Air consumption - l/min 12 Maximum dimensions - mm 2510 x 1910 x 2200 Approx weight - kg 4000 Machine elements "R" ABRASIVE BELT - Abrasive belt unit with contact roller 180 mm diameter with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 1 speed motor kW 11 with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system "B" CYLINDRICAL BRUSH - Carousel group with 8 abrasive brushes, size 300 mm with the ability to create a rounding radius of up to 2 mm
